Description

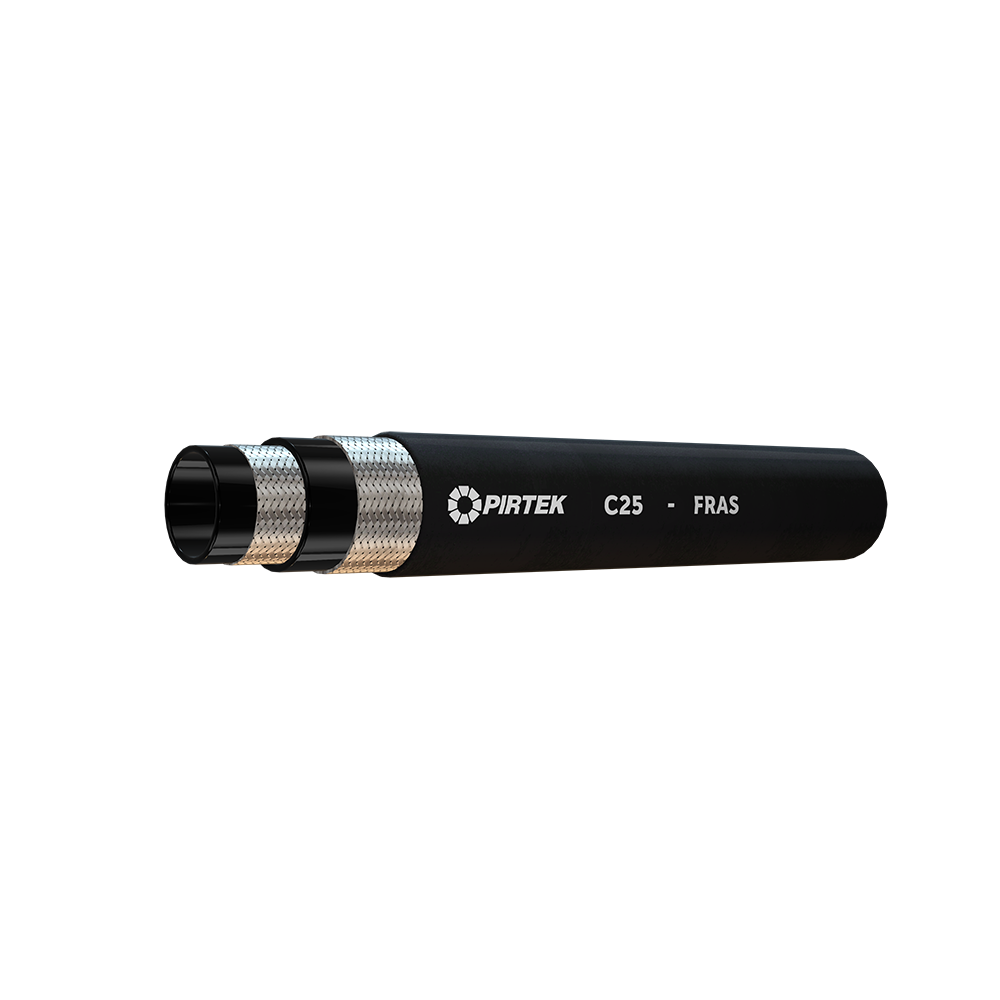

INNER LINER
Seamless synthetic rubber. Resistant to oil
REINFORCEMENT
Two braids of high tensile steel wire
OUTER COVER
Black synthetic rubber resistant to abrasion/oils/ozone and weathering
TEMPERATURE RANGE
• -40ºC up to +100ºC mineral oil
• -40ºC up to +60ºC water based fluids
• 0ºC up to +60ºC water
• -40ºC up to 70ºC ambient.
• Prolonged usage with water or water based fluids at temperatures above 60ºC will allow wire corrosion as a result of diffusion through the inner liner.
SAFETY FACTOR
4:1
VACUUM RATING
-0.2 Bar (7.6 in-Hg)
APPLICATION
Isobaric hose for hydraulic fluids such as mineral and vegetable oils/aqueous emulsions/ water/air and inert gases. Outer cover must be pin-pricked if hose is to be used to convey air or gases above 17 bar.
FEATURES
MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static). Long life fatigue resistance
SPECIFICATIONS/PERFORMANCE
Meets or exceeds the performance specifications of
• SAE 100R16
• EN 857 2SC
• ISO 11237 2SC/R16
