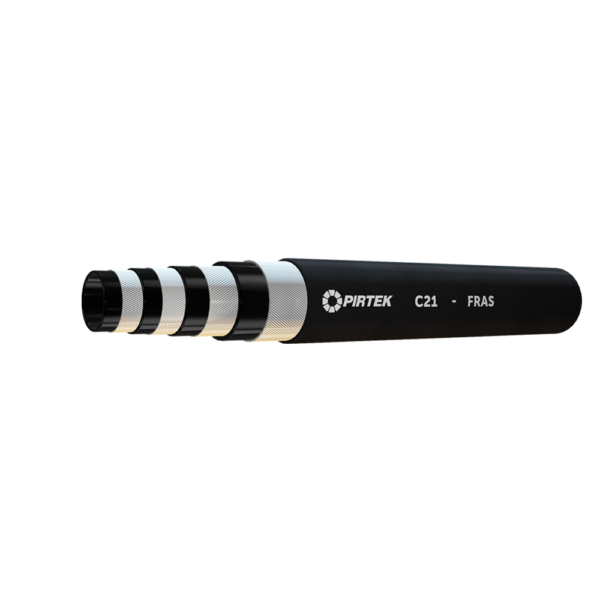

Description
INNER LINER
Seamless synthetic rubber. Resistant to oil
REINFORCEMENT
Four spirals of high tensile steel wire
OUTER COVER
Black synthetic rubber resistant to abrasion/oils/ozone and weathering
TEMPERATURE RANGE
• -40ºC up to +120ºC mineral oil
• -40ºC up to +70ºC water based fluids
• 0ºC up to +70ºC water
• -40ºC up to +70ºC ambient.
• Prolonged usage with water or water based fluids at temperatures above 70ºC will allow wire corrosion as a result of diffusion through the inner liner.
SAFETY FACTOR
4:1
VACUUM RATING
-0.2 Bar (7.6 in-Hg)
APPLICATION
Isobaric hose for hydraulic fluids such as mineral and vegetable oils/aqueous emulsions/water/air and inert gases. Outer cover must be pin-pricked if hose is to be used to convey air or gases above 17 bar.
FEATURES
MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static). Long life fatigue resistance
SPECIFICATIONS/PERFORMANCE
Meets or exceeds the performance specifications of
• SAE 100R12
• EN 856 4SP/R12
• AS 3791 100R12
• ISO 3862 4SP/R12
• ISO 18752 CC
• JIS K6349-3
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| C21-32 | 2 | 50.8 | 66.7 | 210 | 3046 | 500 | 4.2 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp |
|---|---|
| -32 | J/X |
