Description

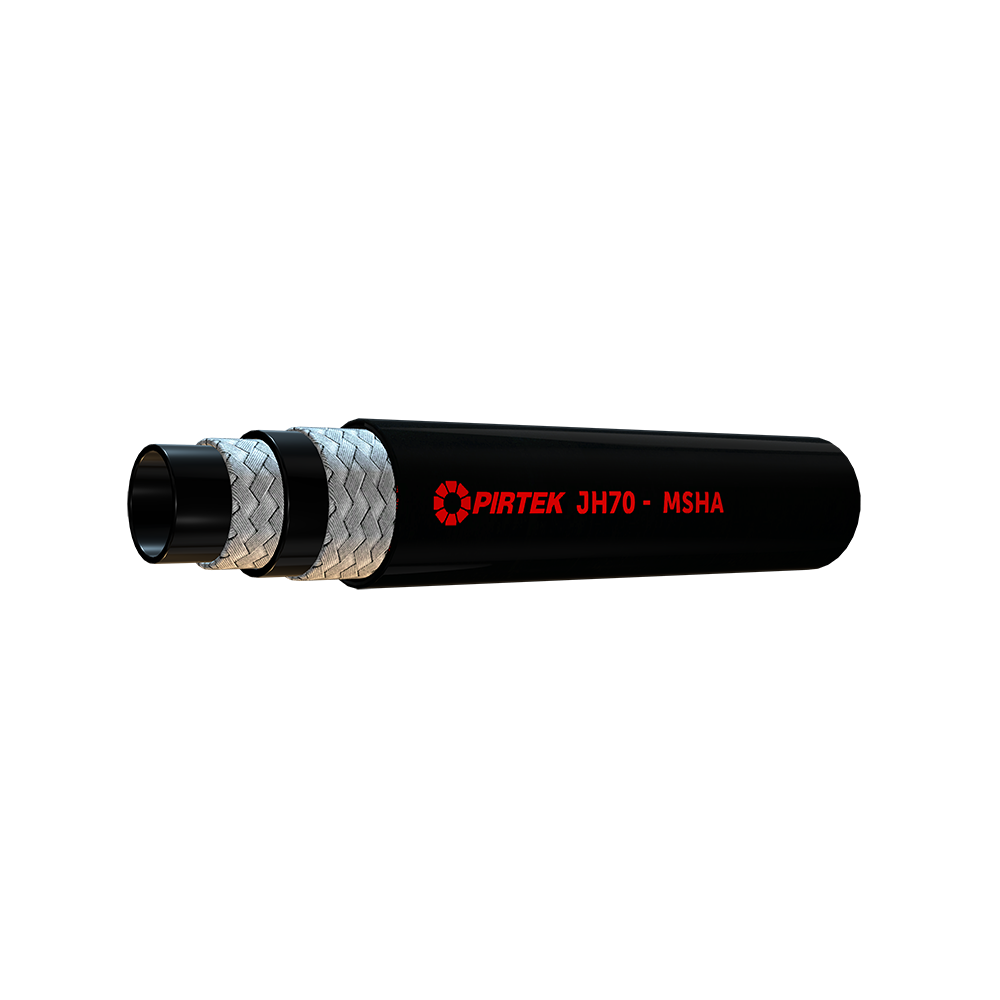

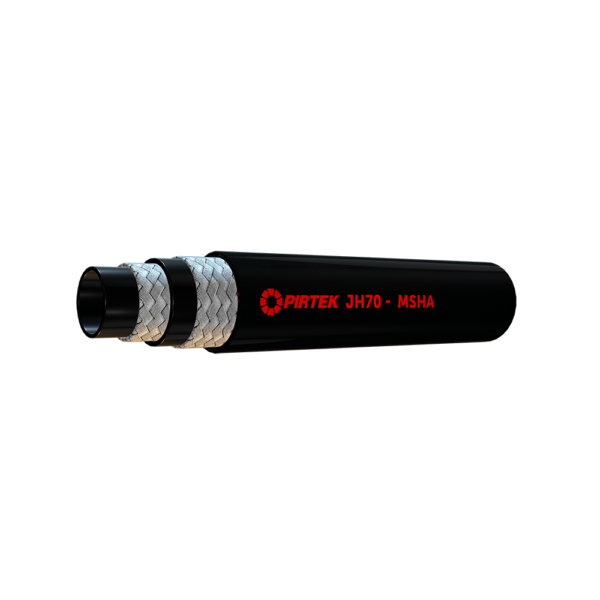

INNER LINER
Seamless NBR (Nitrile) rubber. Oil resistant
REINFORCEMENT
Two braids of high tensile steel wire
OUTER COVER
Black synthetic rubber resistant to abrasion/oils/ozone and weathering
TEMPERATURE RANGE
• -40ºC up to +100ºC mineral oil
• -40ºC up to +125ºC intermittent
SAFETY FACTOR
2:1
VACUUM RATING
N/A
APPLICATION
High pressure hose for hydraulic fluids including mineral and vegetable oil in hydraulic jacking applications. If fitting quick release couplings (Pirtek 3000 series) NM1E extended male NPT hose fittings are recommended.
FEATURES
MSHA flame resistance. Strain relievers (product code SRP) are recommended to prevent kinking of hose at the end of the ferrule
SPECIFICATIONS/PERFORMANCE
Only for use on jacking systems
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| JH70-04 | 1/4 | 6.4 | 15.3 | 700 | 10153 | 80 | 0.372 |
| JH70-06 | 3/8 | 9.5 | 19.3 | 700 | 10153 | 95 | 0.569 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp |
| -4 | K |
| -6 | K |
