Description

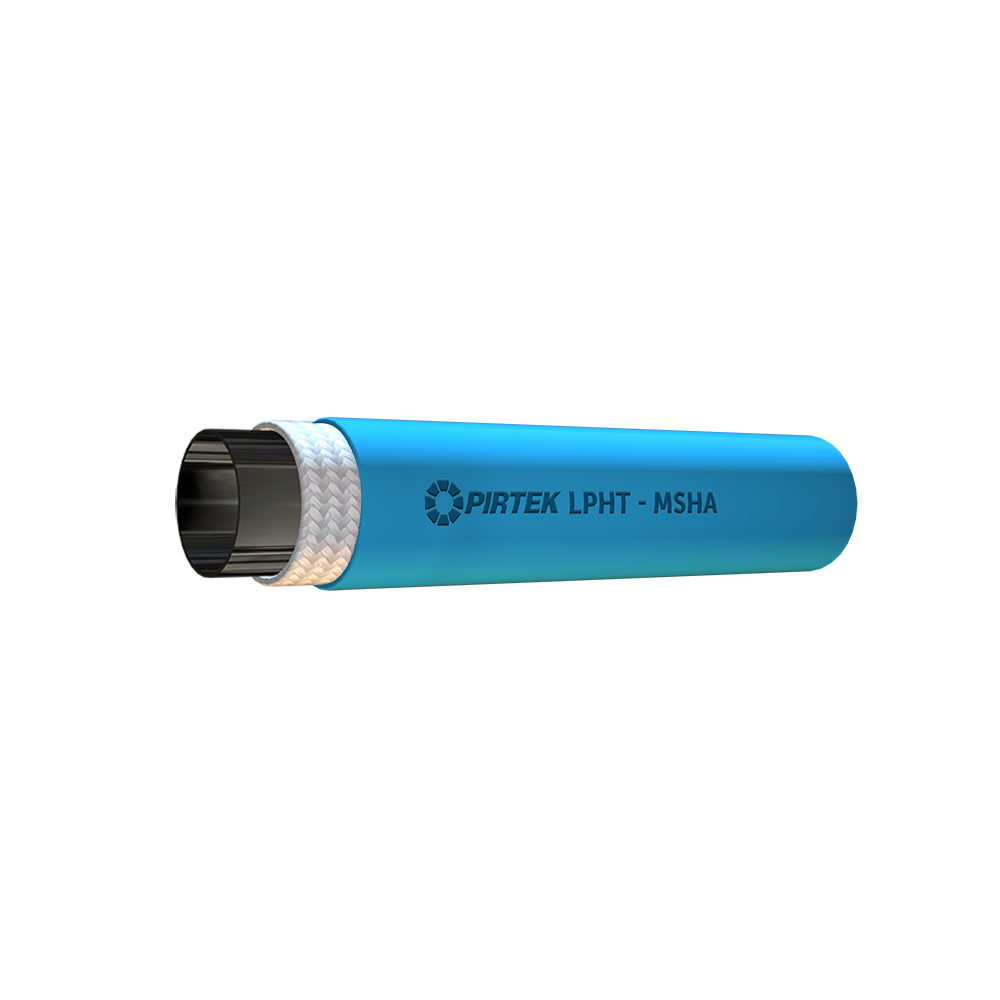

INNER LINER
Seamless CPE/AQP rubber. Oil resistant
REINFORCEMENT
One braid of polyester
OUTER COVER
Blue CPE rubber. Resistant to oils/ozone/flame and weathering
TEMPERATURE RANGE
• -40ºC up to +149ºC hydraulic/transmission oils (petroleum based) & Diesel
• -40ºC up to +100ºC E10 & B20 (biodiesel)
• 0ºC up to +82ºC water/water based fluid & glycol (anti-freeze)
• 0ºC up to +121ºC air
• -40ºC up to +121ºC ambient
SAFETY FACTOR
4:1
VACUUM RATING
• -0.9 Bar (26.5 in-Hg) -4 to -8
• -0.6 Bar (17.7 in-Hg) -10 to -12
APPLICATION
Low pressure textile braid hose for petroleum based hydraulic oil/lubricating fluids/diesel/unleaded petrol/aqueous emulsions/water and air. Not recommended for impulse applications. Note: Not recommended for Ethanol/Methanol including blends. (Excluding E10)
FEATURES
MSHA 2G flame resistance approved. Extremely Flexible
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| LPHT-04 | 1/4 | 6.4 | 12.4 | 21 | 305 | 76 | 0.12 |
| LPHT-06 | 3/8 | 9.5 | 16.0 | 21 | 305 | 76 | 0.18 |
| LPHT-08 | 1/2 | 12.7 | 19.0 | 21 | 305 | 127 | 0.22 |
| LPHT-10 | 5/8 | 15.9 | 23.1 | 21 | 305 | 152 | 0.31 |
| LPHT-12 | 3/4 | 19.1 | 26.4 | 21 | 305 | 177 | 0.37 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp | Crimp Interlock | Push-On |
|---|---|---|---|
| -04 | T | P | |
| -06 | T | P | |
| -08 | T | P | |
| -10 | T | P | |
| -12 | T | P | |
| -16 | P |
