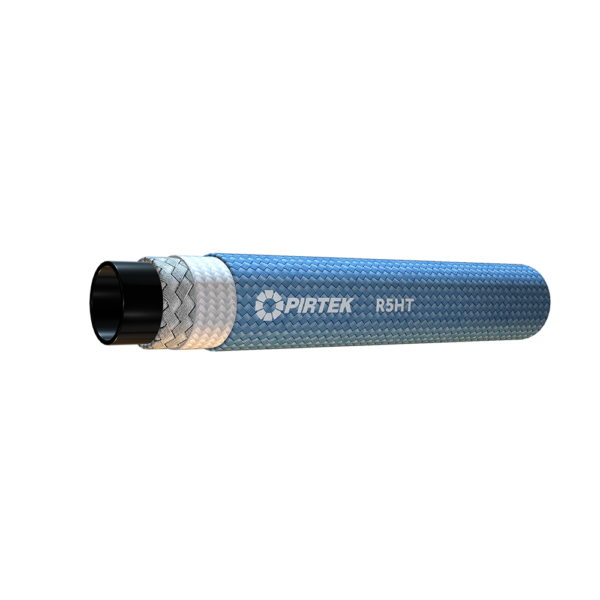

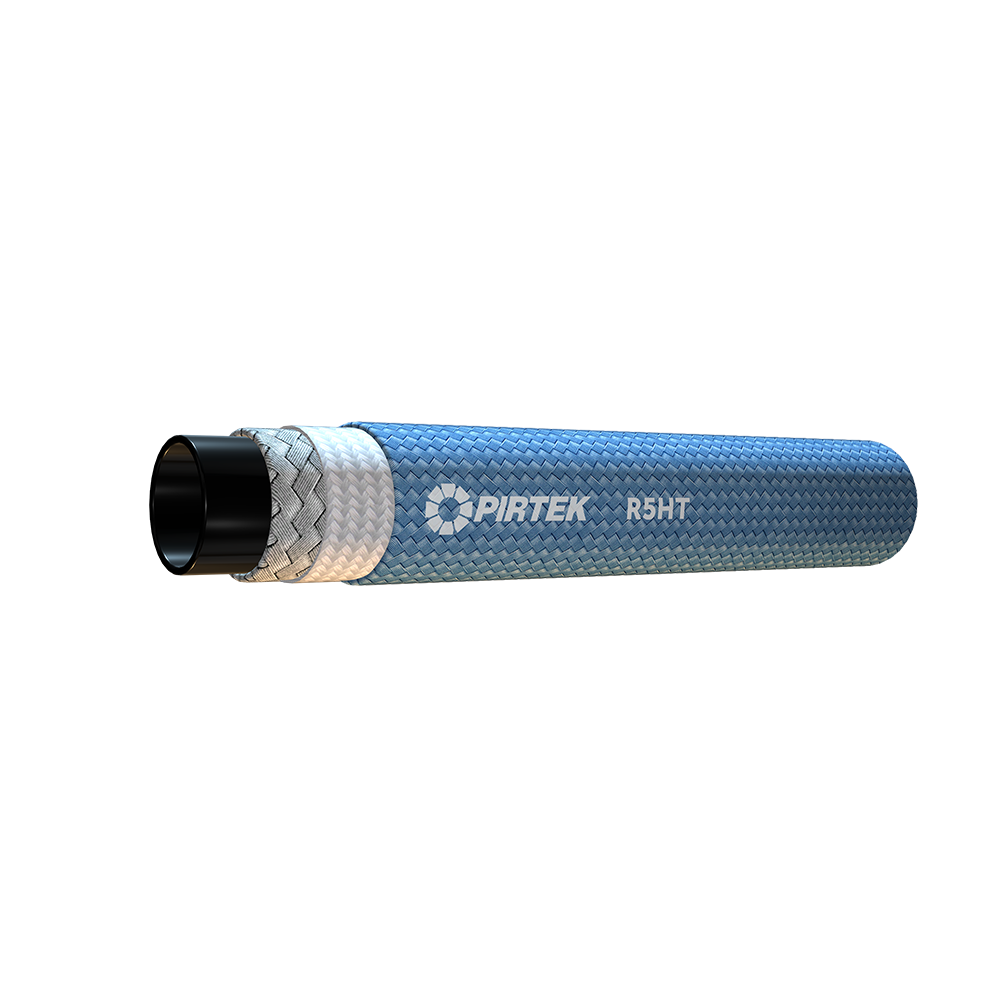

LOW PRESSURE HOSE – R5HT

Back To Listing
Loading...

Description

INNER LINER

Seamless CPE/AQP rubber. Oil resistant

REINFORCEMENT

One textile braid and one braid of high tensile steel wire

OUTER COVER

Black synthetic rubber with blue polyester textile outer braid resistant to abrasion/oils/ozone and weathering.

TEMPERATURE RANGE

• -40ºC up to +149ºC hydraulic/transmission oils (petroleum based) & Diesel
• -40ºC up to +100ºC E10 & B20 (biodiesel)
• 0ºC up to +82ºC water/water based fluid & glycol (anti-freeze)
• 0ºC up to +121ºC air
• -40ºC up to +121ºC ambient

SAFETY FACTOR

4:1

VACUUM RATING

• -0.9 Bar (26.5 in-Hg) -4 to -12
• -0.6 Bar (17.7 in-Hg) -16 to -20
• -0.5 Bar (15 in-Hg) -24
• -0.3 Bar (11 in-Hg) -32

APPLICATION

Low to medium pressures hose that will handle high temperature hydraulic fluids such as mineral and vegetable oils/diesel/fire resistant hydraulic fluids/B20/petrol/E10/aqueous emulsions/water/air and inert gases

FEATURES

Permeable cover allows safe escape of entrapped air when used to conduct high pressure air. High temperature resistance.

SPECIFICATIONS/PERFORMANCE

Meets or exceeds
• SAE 100R5
• AS 3791 100R5
• SAE J1402 AII

Specifications

Item ID – inch ID – mm OD (avg) – mm Max. W.P – bar Max. W.P – psi Min. Bend Radius – mm Weight – Kg/m Notes
R5HT-04 3/16 5.1 13.2 207 3002 76 0.19
R5HT-05 1/4 6.8 14.8 207 3002 86 0.24
R5HT-06 5/16 8.3 17.1 155 2248 102 0.34
R5HT-08 13/32 10.7 19.5 138 2002 117 0.39
R5HT-10 1/2 13.2 23.4 121 1755 140 0.55
R5HT-12 5/8 16.4 27.4 103 1494 165 0.69
R5HT-16 7/8 22.8 31.4 55 798 187 0.66
R5HT-20 1.1/8 29.2 38.1 43 624 229 0.78
R5HT-24 1.3/8 35.5 44.4 34 493 267 1
R5HT-32 1.13/16 46.6 56.2 20.7 300 337 1.4 Does not comply with SAE 100R5 operating pressure of 24 bar or minimum burst pressure of 96 bar





COMPATIBLE HOSE COUPLINGS

Hose Size Crimp Re-usable
-04 R A
-05 R A
-06 R A
-08 R A
-10 R A
-12 R A
-16 R A
-20 R A
-24 R A
-32 R A
