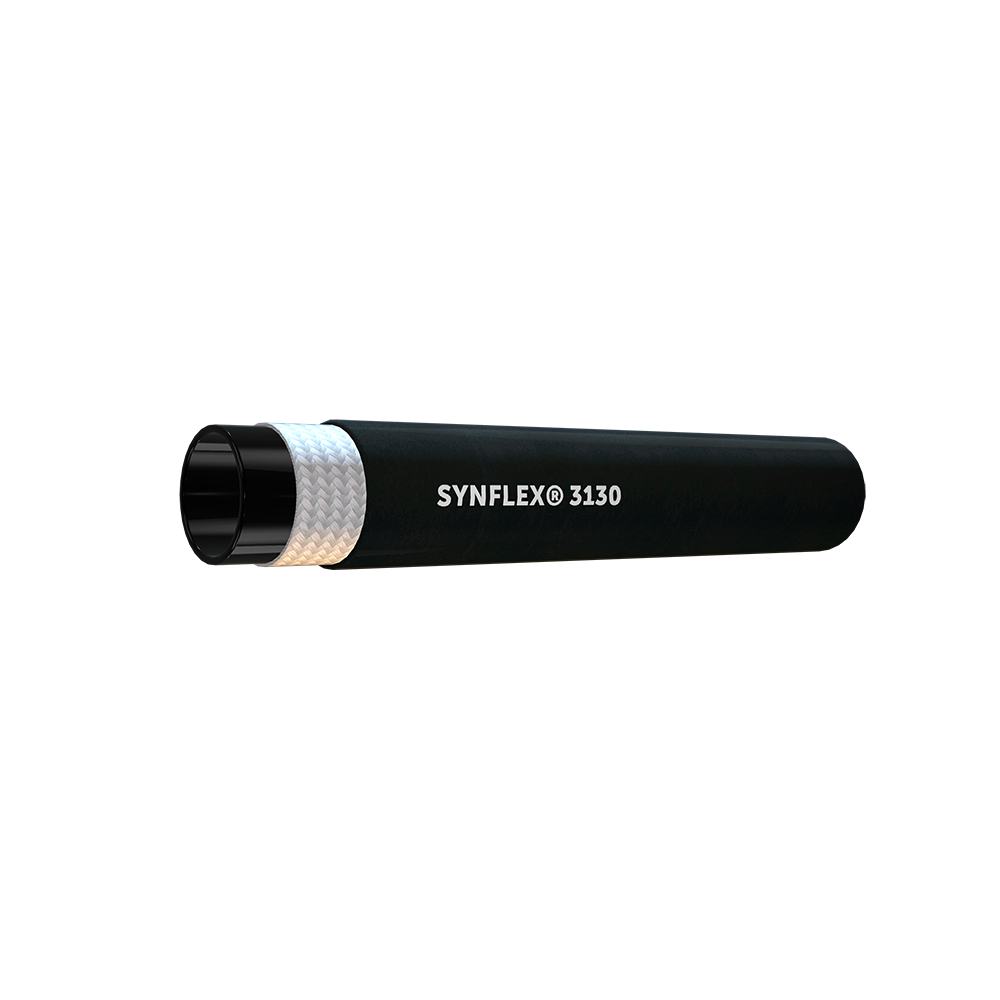

Description
INNER LINER
Smooth seamless thermoplastic (nylon)
REINFORCEMENT
Spiral or braided synthetic fibre
OUTER COVER
Black perforated bonded polyurethane
TEMPERATURE RANGE
• -40ºC up to +100ºC
• -40ºC up to + 66ºC with water-based or fire resistant fluids
SAFETY FACTOR
4:1
VACUUM RATING
N/A
APPLICATION
Medium pressure hose for general hydraulics/material handling (not for use over pulleys)/high pressure gas transfer/chemical transfer/marine steering.
FEATURES
Low elongation. Absorbs shock loads and damaging pressure spikes through controlled expansion.
SPECIFICATIONS/PERFORMANCE
Meets or exceeds SAE 100R7
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| 3130-12 | 3/4 | 19.1 | 27.1 | 86 | 1247 | 127 | 0.2619 |
| 3130-16 | 1 | 25.4 | 34.0 | 69 | 1001 | 203 | 0.4628 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp |
|---|---|
| -12 | T/S7 |
| -16 | T/S7 |
