Description

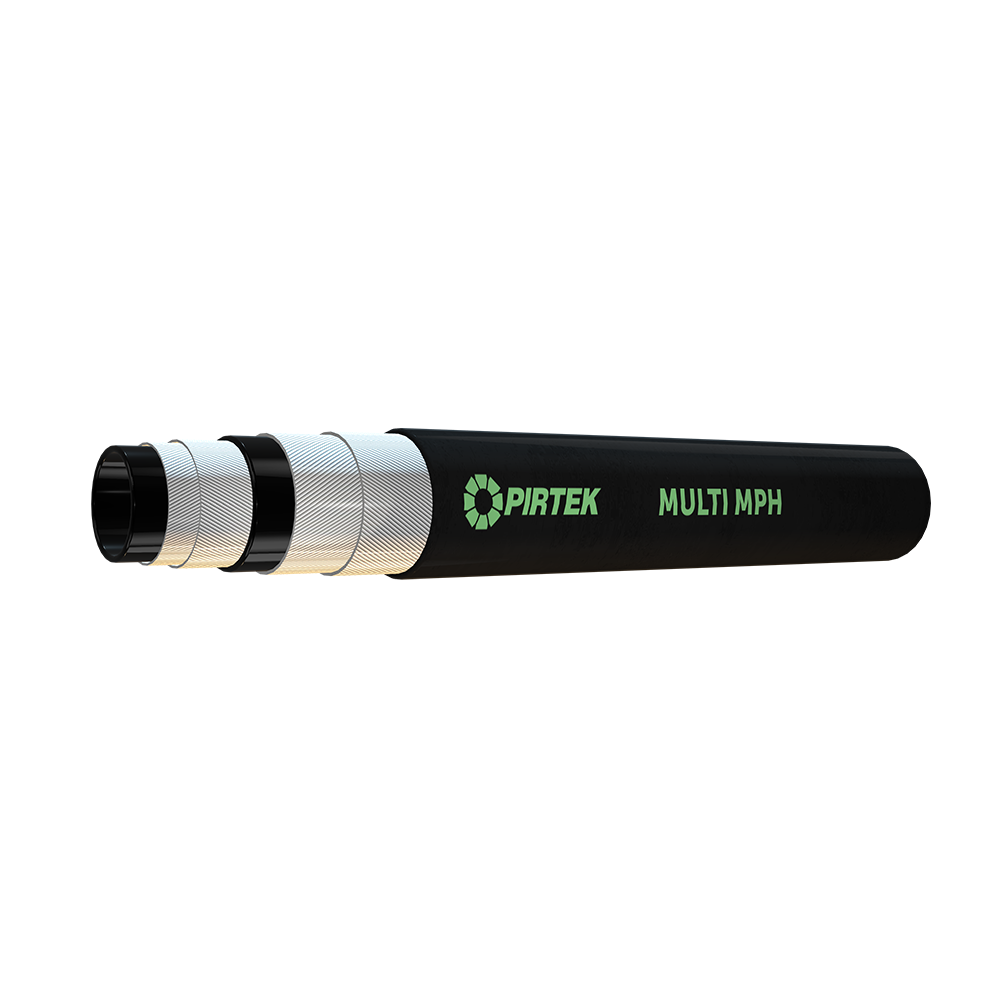

INNER LINER
Black smooth NBR (Nitrile) seamless synthetic rubber. Oil resistant
REINFORCEMENT
Two braids (-10) or four (-4 to -16) spirals of textile fibre
OUTER COVER
Black CR (Neoprene) synthetic rubber compound resistant to abrasion/oils/ozone and weathering
TEMPERATURE RANGE
• Water 0ºC up to +50ºC (continuous)
• Water 0ºC up to +70ºC (temporary)
• Air -40ºC up to +50ºC (in case of air applications – pressure should be no more than 20bar)
• Other fluids -40ºC up to +100ºC
• -40ºC up to 70ºC ambient
SAFETY FACTOR
4:1
VACUUM RATING
N/A
APPLICATION
Low pressure hose for fluids such as mineral and vegetable oils/aqueous emulsions/water/air and inert gases.
FEATURES
Heavy duty construction
SPECIFICATIONS/PERFORMANCE
Meets or exceeds the performance specifications of
• SAE 100R6
• AS 3791 100R6
• EN 854 R6
• JIS B 8360
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| MPH-04 | 1/4 | 6.4 | 14.0 | 35 | 508 | 55 | 0.15 |
| MPH-05 | 5/16 | 7.9 | 15.8 | 35 | 508 | 60 | 0.19 |
| MPH-06 | 3/8 | 9.5 | 17.4 | 35 | 508 | 65 | 0.21 |
| MPH-08 | 1/2 | 12.7 | 21.3 | 35 | 508 | 90 | 0.28 |
| MPH-10 | 5/8 | 15.9 | 23.5 | 35 | 508 | 110 | 0.3 |
| MPH-12 | 3/4 | 19.1 | 31.4 | 35 | 508 | 135 | 0.59 |
| MPH-16 | 1 | 25.4 | 37.5 | 35 | 508 | 170 | 0.74 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp | Push-On |
|---|---|---|
| -04 | P | |
| -05 | T | |
| -06 | T | P |
| -08 | T | P |
| -10 | T | P |
| -12 | P | |
| -16 | P |
