Description

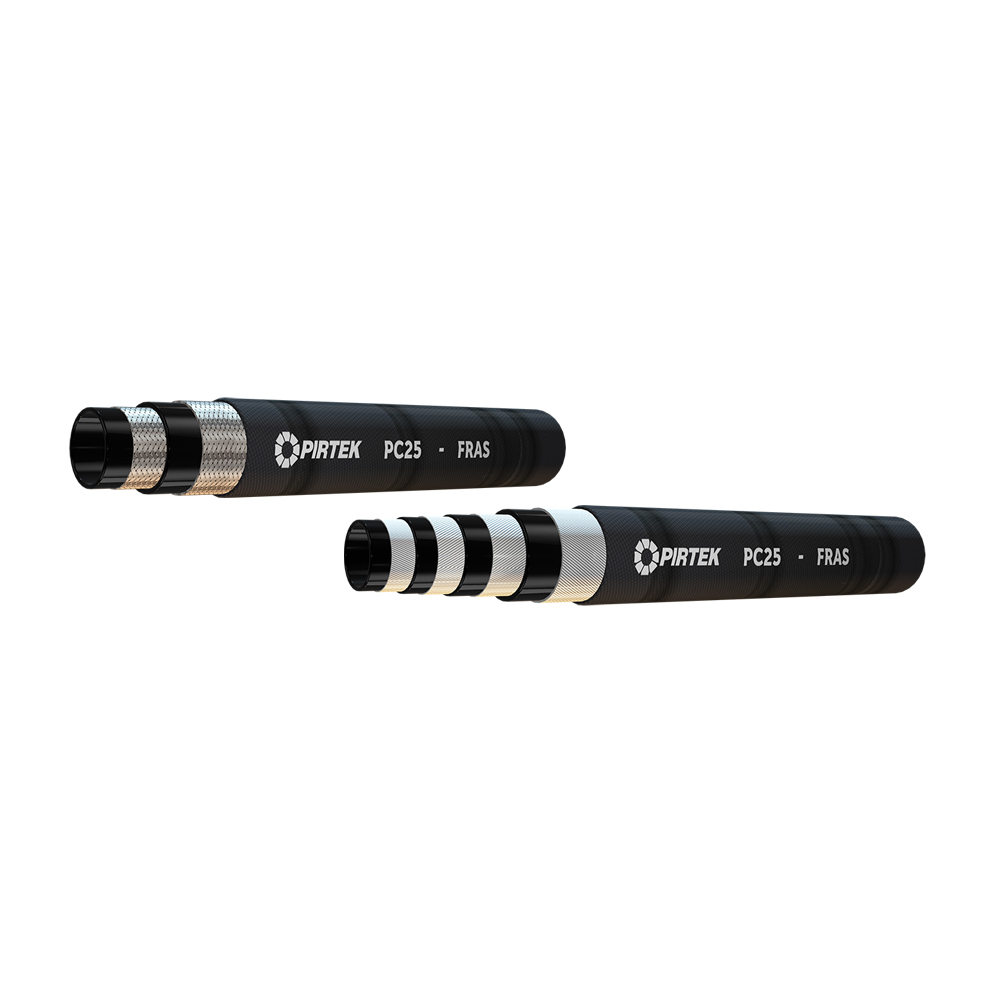

INNER LINER
Seamless synthetic rubber. Resistant to oil
REINFORCEMENT
Two braids (-10 & -12) or four spirals (-20 & -24) of high tensile steel wire
OUTER COVER
High abrasion resistance black synthetic rubber resistant to oils/ozone and weathering
TEMPERATURE RANGE
• Braided hose -40ºC up to +100ºC mineral oil
• -40ºC up to +60ºC water based fluids
• 0ºC up to 60ºC water
• -40ºC up to 70ºC ambient.
• Spiral hoses -40ºC up to +120ºC mineral oil
• -40ºC up to +70ºC water based fluids
• 0ºC up to +70ºC water
• -40ºC up to +70ºC ambient.
• Prolonged usage with water or water based fluids at temperatures above 70ºC will allow wire corrosion as a result of diffusion through the inner liner.
SAFETY FACTOR
4:1
VACUUM RATING
-0.2 Bar (7.6 in-Hg)
APPLICATION
Isobaric (constant 250 bar working pressure across all sizes) hose for hydraulic fluids such as mineral oils/aqueous emulsions/water/air and inert gases. Outer cover must be pin-pricked if hose is to be used to convey air or inert gases above 17 bar.
FEATURES
MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static). Long life fatigue resistance. Excellent compact bend radius
SPECIFICATIONS/PERFORMANCE
Meets or exceeds the performance specifications of:
(braided hose)
• SAE 100R16
• EN 857 2SC
• ISO 11237 2SC/R16
(spiral hoses)
• SAE 100R12
• AS 3791 100R12
• ISO 3862 R12
• EN 856 R12
• ISO 18752 CC
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| PC25-10 | 5/8 | 15.9 | 26.0 | 250 | 3626 | 140 | 0.84 |
| PC25-12 | 3/4 | 19.1 | 29.1 | 250 | 3626 | 170 | 0.96 |
| PC25-20 | 1.1/4 | 31.8 | 44.9 | 250 | 3626 | 280 | 2.36 |
| PC25-24 | 1.1/2 | 38.1 | 52.4 | 250 | 3626 | 330 | 3.06 |
| C42-16 | 1 | 25.4 | 38.2 | 420 | 6092 | 300 | 2.2 |
| C42-20 | 1.1/4 | 31.8 | 49.8 | 420 | 6092 | 400 | 3.9 |
| C42EH-32 | 2 | 50.8 | 71.6 | 420 | 6092 | 630 | 6.7 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp | Crimp Interlock |
|---|---|---|
| -10 | K | |
| -12 | J | |
| -20 | J/X | |
| -24 | J/X | |
| -16 | J/X | IF13 |
| -20 | H/X | IF13 |
| C42EH-32 | IFEH/IF13 |
