Description

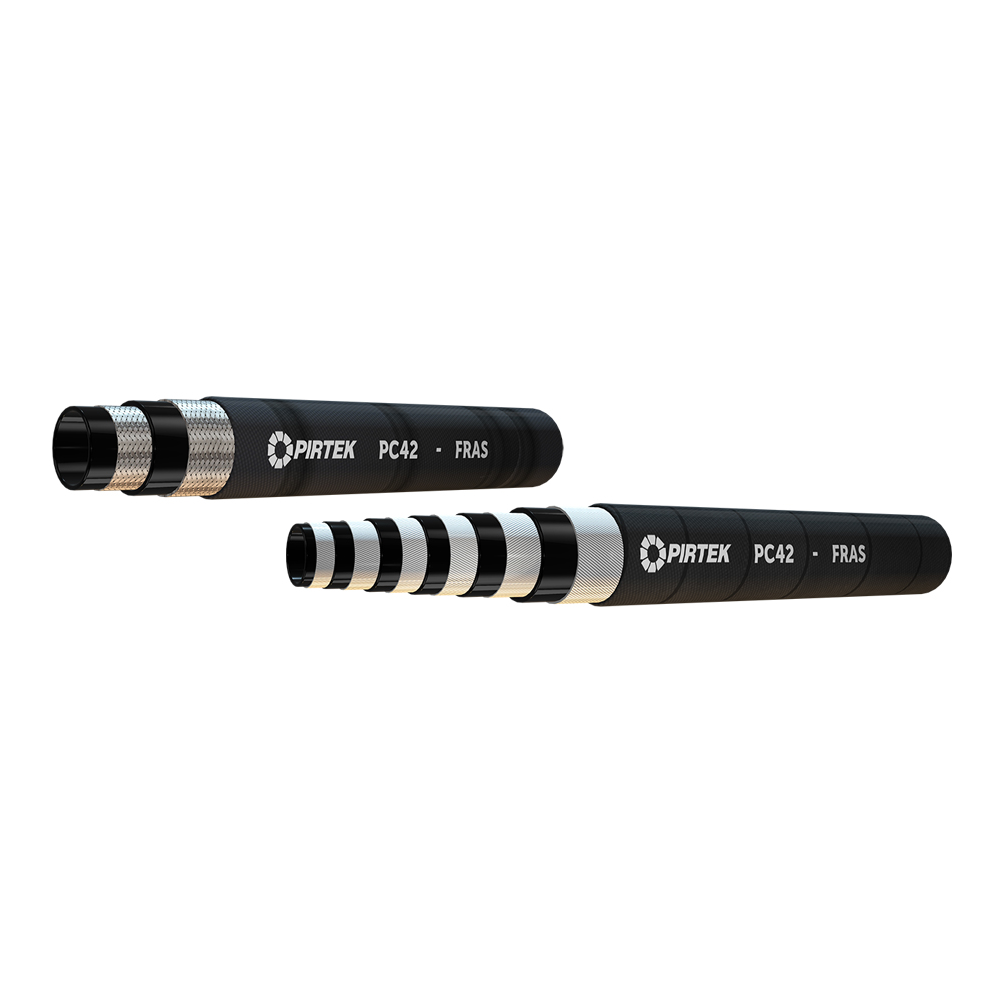

INNER LINER
Seamless synthetic rubber. Resistant to oil
REINFORCEMENT
Two braids (-04) or 6 spirals (-24 and -32) of high tensile steel wire
OUTER COVER
High abrasion resistance black synthetic rubber resistant to oils/ozone and weathering
TEMPERATURE RANGE
• Braided hose -40ºC up to +100ºC mineral oil
• -40ºC up to +60ºC water based fluids
• 0ºC up to 60ºC water
• -40ºC up to 70ºC ambient.
• Spiral hoses -40ºC up to +120ºC mineral oil
• -40ºC up to +70ºC water based fluids
• 0ºC up to +70ºC water
• -40ºC up to +70ºC ambient.
• Prolonged usage with water or water based fluids at temperatures above 70ºC will allow wire corrosion as a result of diffusion through the inner liner.
SAFETY FACTOR
4:1
VACUUM RATING
-0.2 Bar (7.6 in-Hg)
APPLICATION
Isobaric (constant 420 bar working pressure across all sizes) hose for hydraulic fluids such as mineral oils/aqueous emulsions/water/air and inert gases. Outer cover must be pin-pricked if hose is to be used to convey air or inert gases above 17 bar.
FEATURES
MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static). Long life fatigue resistance. Excellent compact bend radius
SPECIFICATIONS/PERFORMANCE
Meets or exceeds the performance specifications of:
(braided hose)
• SAE 100R16
• EN 857 2SC
• ISO 11237 2SC/R16
(spiral hoses)
• SAE 100R15
• ISO 3862 R15
• ISO 18752 CC
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| PC42-04 | 1/4 | 6.4 | 14.9 | 420 | 6092 | 70 | 0.39 |
| PC42-24 | 1.1/2 | 38.1 | 55.6 | 420 | 6092 | 330 | 4.6 |
| PC42-32 | 2 | 50.8 | 71.5 | 420 | 6092 | 395 | 7.2 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp | Crimp Interlock |
|---|---|---|
| -04 | K | |
| -24 | H/X | IF13 |
| -32 | HLZ | IFBS |
