Description

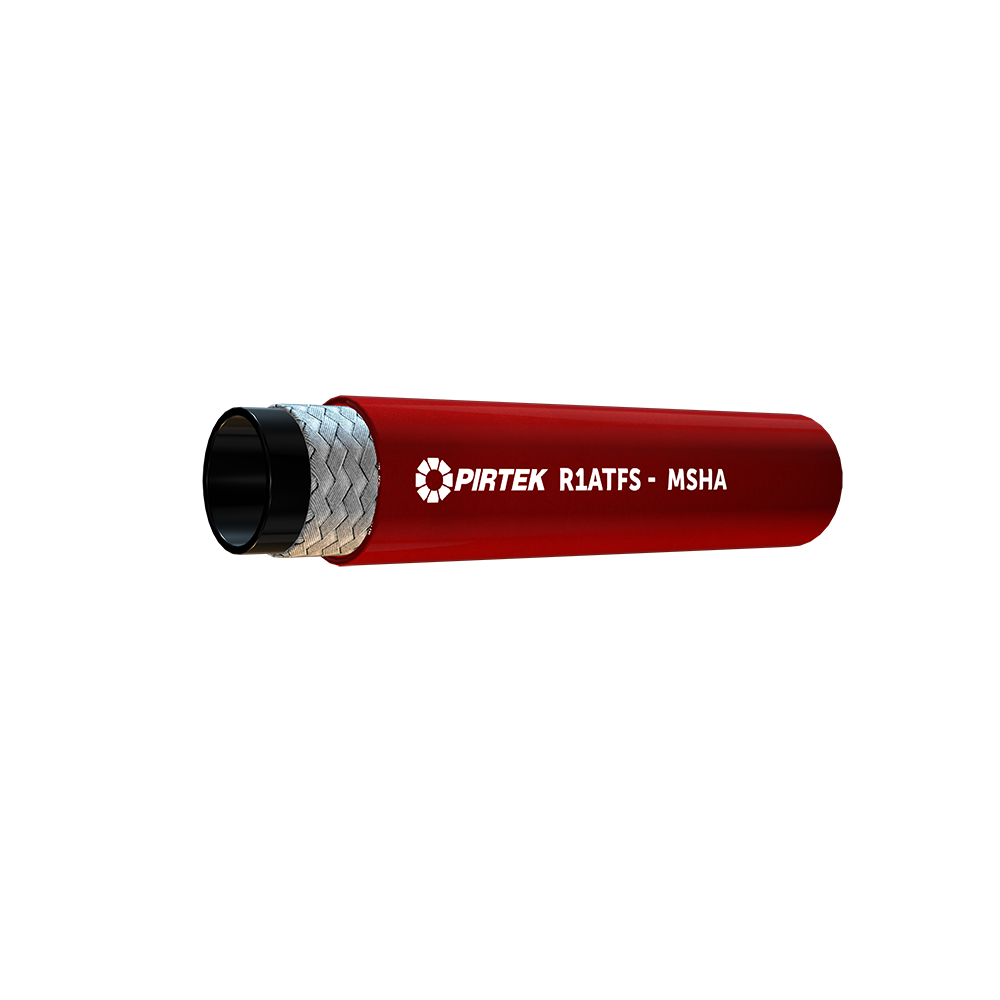

INNER LINER
Seamless synthetic rubber. Resistant to oil/water based fire extinguishing agents/aqueous foam/dry chemical power and carbon dioxide.
REINFORCEMENT
One braid of high tensile steel wire.
OUTER COVER
Red synthetic rubber resistant to abrasion/oils/ozone/heat and weathering
TEMPERATURE RANGE
• -40ºC up to +100ºC
• -40ºC up to +60ºC water based fluids
• 0ºC up to +60ºC water
• 0ºC up to +50ºC air
• -40ºC up to +70ºC ambient.
• Prolonged usage with water or water based fluids at temperatures above 60ºC will allow wire corrosion as a result of diffusion through the inner liner.
SAFETY FACTOR
4:1
VACUUM RATING
N/A
APPLICATION
Medium pressure hose with red cover for ease of identification as a fire suppression hose/ideal for use on mining equipment/off-road vehicles and stationary equipment which are commonly equipped with fire suppression systems to protect operators and help reduce extensive damage if a fire occurs.
FEATURES
MSHA 2G flame resistance approved. Approved within Australia for use on fire suppression systems.
SPECIFICATIONS/PERFORMANCE
• SAE 100R1AT
• EN853 1SN
• AS 3791 100R1
• ISO 1436 R1AT/1SN. Meets hose requirements outlined in AS 5062
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| R1ATFS-04 | 1/4 | 6.4 | 13.4 | 225 | 3263 | 100 | 0.23 |
| R1ATFS-04 SERIES II | 1/4 | 6.4 | 12.8 | 225 | 3263 | 100 | 0.21 |
| R1ATFS-06 | 3/8 | 9.5 | 17.4 | 180 | 2611 | 130 | 0.33 |
| R1ATFS-06 SERIES II | 3/8 | 9.5 | 16.9 | 180 | 2611 | 125 | 0.32 |
| R1ATFS-08 | 1/2 | 12.7 | 20.6 | 160 | 2321 | 180 | 0.41 |
| R1ATFS-08 SERIES II | 1/2 | 12.7 | 19.9 | 160 | 2321 | 180 | 0.40 |
| R1ATFS-12 | 3/4 | 19.1 | 27.7 | 105 | 1523 | 240 | 0.61 |
| R1ATFS-12 SERIES II | 3/4 | 19.1 | 27.1 | 105 | 1523 | 240 | 0.57 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp | Re-usable |
|---|---|---|
| -04 | K | RN1 |
| -06 | K | RN1 |
| -08 | K | RN1 |
| -12 | J | RN1 |
