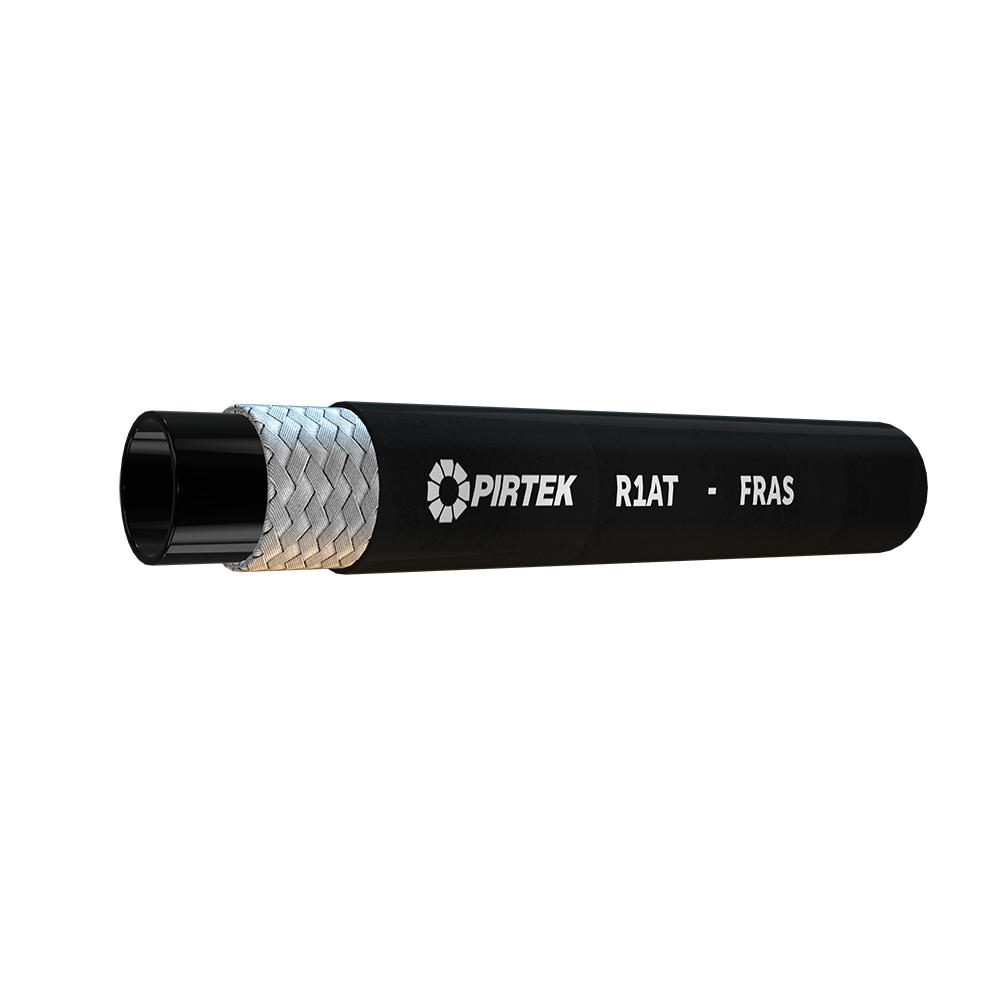

SINGLE WIRE BRAID – R1AT

Back To Listing
Loading...

Description

INNER LINER

Seamless NBR (Nitrile) rubber. Oil resistant

REINFORCEMENT

One braid of high tensile steel wire

OUTER COVER

Black smooth synthetic rubber resistant to abrasion/oils/ozone and weathering

TEMPERATURE RANGE

• -40ºC up to +100ºC mineral oil
• -40ºC up to +60ºC water based fluids
• 0ºC up to +60ºC water
• 0ºC up to +50ºC air
• -40ºC up to +70ºC ambient.
• Prolonged usage with water or water based fluids at temperatures above 60ºC will allow wire corrosion as a result of diffusion through the inner liner.

SAFETY FACTOR

4:1

VACUUM RATING

-0.2 Bar (7.6 in-Hg)

APPLICATION

Medium pressure hose for hydraulic fluids such as mineral oils/aqueous emulsions/water/air and inert gases. Outer cover must be pin-pricked if hose is to be used to convey air or gas above 17 bar.

FEATURES

MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static).

SPECIFICATIONS/PERFORMANCE

• SAE 100R1AT
• EN853 1SN
• AS 3791 100R1
• ISO 1436 R1AT/1SN

Specifications

Item ID – inch ID – mm OD (avg) – mm Max. W.P – bar Max. W.P – psi Min. Bend Radius – mm Weight – Kg/m Notes
R1AT-03 3/16 4.9 11.8 250 3626 90 0.18 Non-standard product. Available to special order
R1AT-04 1/4 6.4 13.3 225 3263 100 0.23
R1AT-05 5/16 7.9 15.0 215 3118 115 0.27 Non-standard product. Available to special order
R1AT-06 3/8 9.5 17.3 180 2611 125 0.37
R1AT-08 1/2 12.7 20.3 160 2321 180 0.45
R1AT-10 5/8 15.9 23.5 130 1885 201 0.5
R1AT-12 3/4 19.1 27.5 105 1523 240 0.62
R1AT-16 1 25.4 35.6 88 1276 300 0.93
R1AT-20 1.1/4 31.8 43.2 63 914 420 1.36
R1AT-24 1.1/2 38.1 50.4 50 725 500 1.7
R1AT-32 2 50.8 64.3 40 580 630 2.43

COMPATIBLE HOSE COUPLINGS

Hose Size Crimp Re-usable
-03
-04 K RN1
-05
-06 K RN1
-08 K RN1
-10 K
-12 J RN1
-16 J RN1
-20 J
-24 J
-32 J
