Description
INNER LINER
REINFORCEMENT

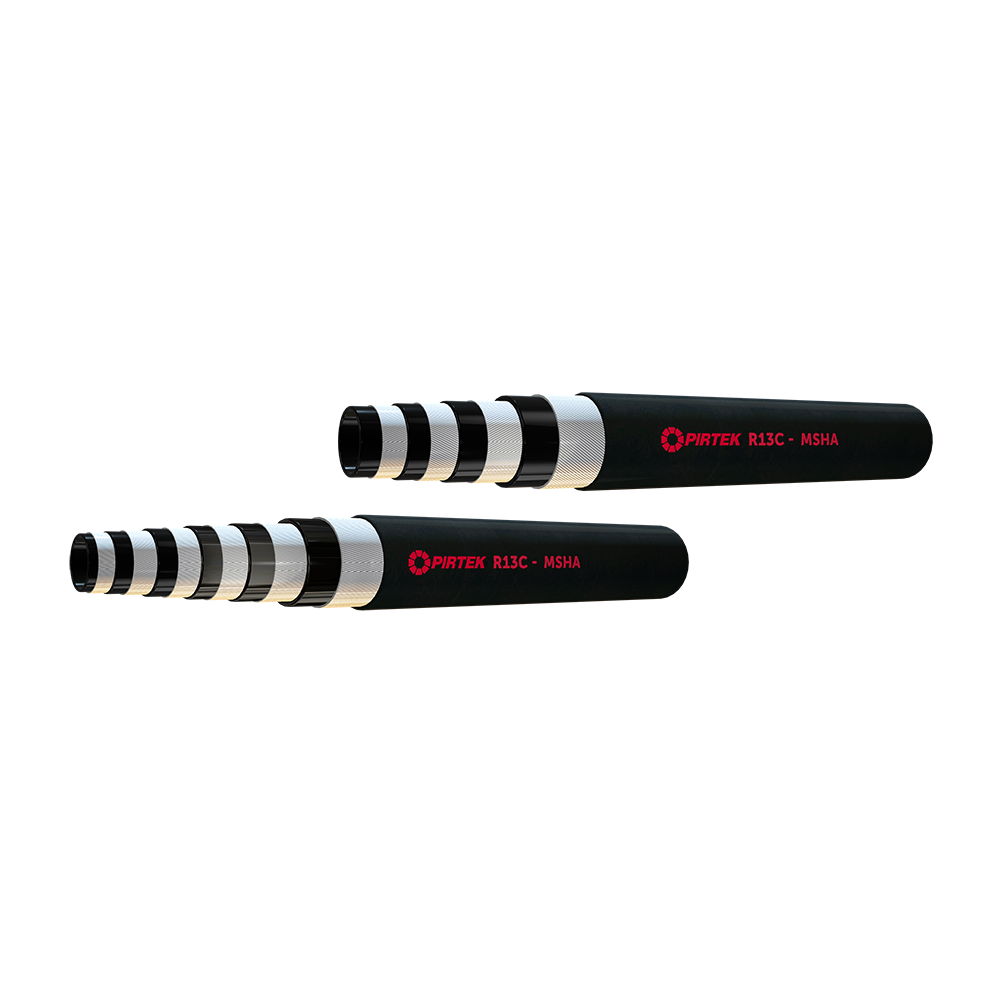

Four spirals (-12 to -16) or six spirals (-20 to -24) of high tensile steel wire separated by layers of synthetic rubber
OUTER COVER
Black synthetic rubber resistant to abrasion/oils/ozone and weathering.
TEMPERATURE RANGE
-40ºC up to +121ºC mineral oil
SAFETY FACTOR
4:1
VACUUM RATING
N/A
APPLICATION
Very high pressure hose for hydraulic fluids such as glycol/mineral oils/fuels/hydrocarbons etc. Specifically designed for applications where high pulsating pressure/flexibility and high temperature resistance are required.
FEATURES
MSHA flame resistance approved. Compatible with Caterpillar® reusable fittings.
SPECIFICATIONS/PERFORMANCE
SAE 100R13
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| R13C-12 | 3/4 | 19.1 | 32.1 | 345 | 5004 | 141 | 1.75 |
| R13C-16 | 1 | 25.4 | 38.7 | 345 | 5004 | 153 | 2.3 |
| R13C-20 | 1.1/4 | 31.8 | 49.8 | 345 | 5004 | 210 | 3.7 |
| R13C-24 | 1.1/2 | 38.1 | 57.3 | 345 | 5004 | 254 | 4.65 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp | Crimp Interlock |
|---|---|---|
| -12 | X | |
| -16 | X | |
| -20 | X | IF13 |
| -24 | X | IF13 |
