Description

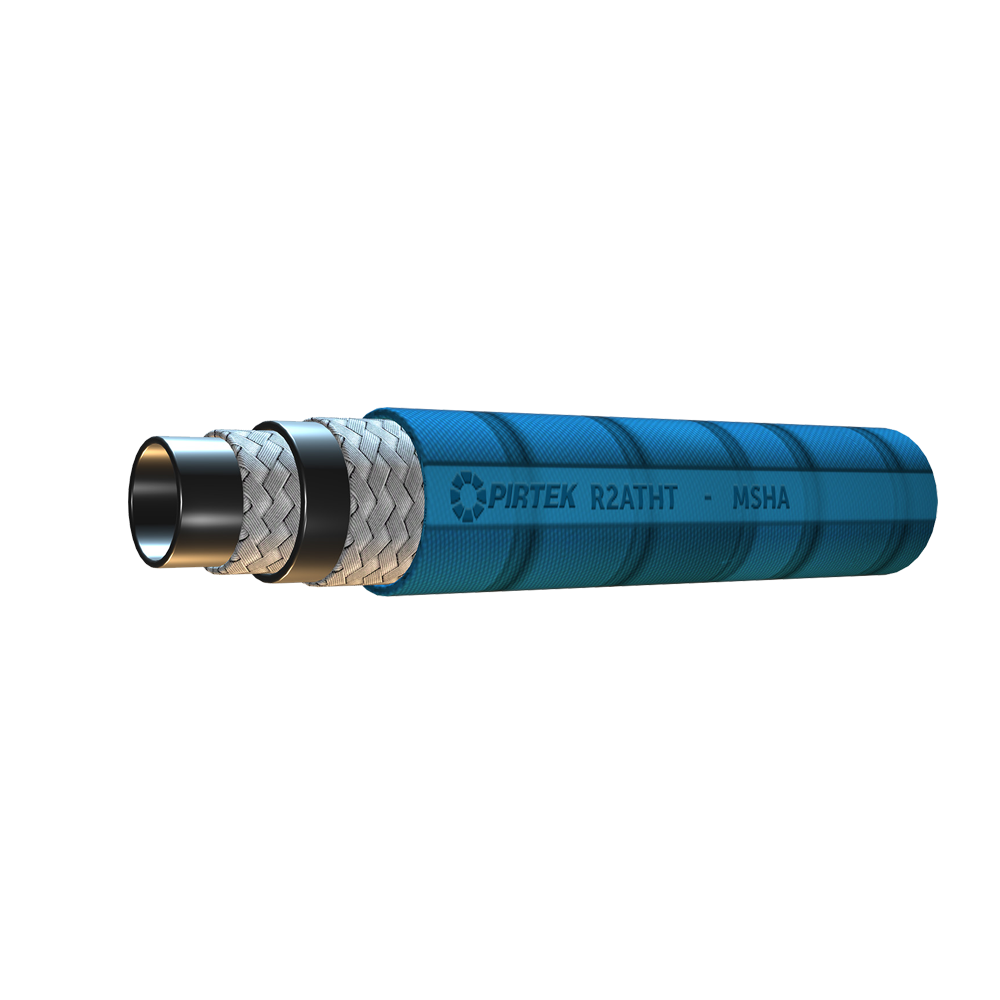

INNER LINER
REINFORCEMENT
Two braids of high tensile steel wire
OUTER COVER
Blue synthetic rubber resistant to abrasion/oils/ozone and weathering
TEMPERATURE RANGE
• -40ºC up to +150ºC except: air not to exceed 121ºC & water not to exceed 70ºC
• Ambient -40ºC up to +135ºC
SAFETY FACTOR
4:1
VACUUM RATING
N/A
APPLICATION
Medium to high pressure/high temperature hose used for hydraulic system service with petroleum/fire resistant and water based fluids/fuel/lubricating systems and air. Outer cover must be pin-pricked if hose is to be used to convey air above 17 bar.
FEATURES
MSHA flame resistance. High temperature resistance
SPECIFICATIONS/PERFORMANCE
Meets or exceeds the performance specifications of
• SAE 100R2AT
• EN853 2SN
• AS 3791 100R2
• ISO 1436 R2AT/2SN
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| R2ATHT-04 | 1/4 | 6.4 | 15.2 | 400 | 5801 | 102 | 0.4 |
| R2ATHT-04 SERIES II | 1/4 | 6.4 | 15.0 | 400 | 5801 | 100 | 0.33 |
| R2ATHT-06 | 3/8 | 9.5 | 19.2 | 345 | 5004 | 127 | 0.58 |
| R2ATHT-06 SERIES II | 3/8 | 9.5 | 19.0 | 330 | 4786 | 125 | 0.52 |
| R2ATHT-08 | 1/2 | 12.7 | 22.1 | 293 | 4250 | 178 | 0.69 |
| R2ATHT-08 SERIES II | 1/2 | 12.7 | 21.9 | 275 | 3988 | 180 | 0.64 |
| R2ATHT-10 | 5/8 | 15.9 | 25.1 | 224 | 3249 | 203 | 0.81 |
| R2ATHT-10 SERIES II | 5/8 | 15.9 | 25.2 | 250 | 3625 | 200 | 0.75 |
| R2ATHT-12 | 3/4 | 19.1 | 29.5 | 207 | 3002 | 241 | 1.00 |
| R2ATHT-12 SERIES II | 3/4 | 19.1 | 29.2 | 215 | 3118 | 240 | 0.92 |
| R2ATHT-16 | 1 | 25.4 | 37.8 | 172 | 2495 | 305 | 1.45 |
| R2ATHT-16 SERIES II | 1 | 25.4 | 37.5 | 165 | 2393 | 300 | 1.37 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp |
|---|---|
| -04 | K |
| -06 | K |
| -08 | K |
| -10 | K |
| -12 | J |
| -16 | J |
