Description

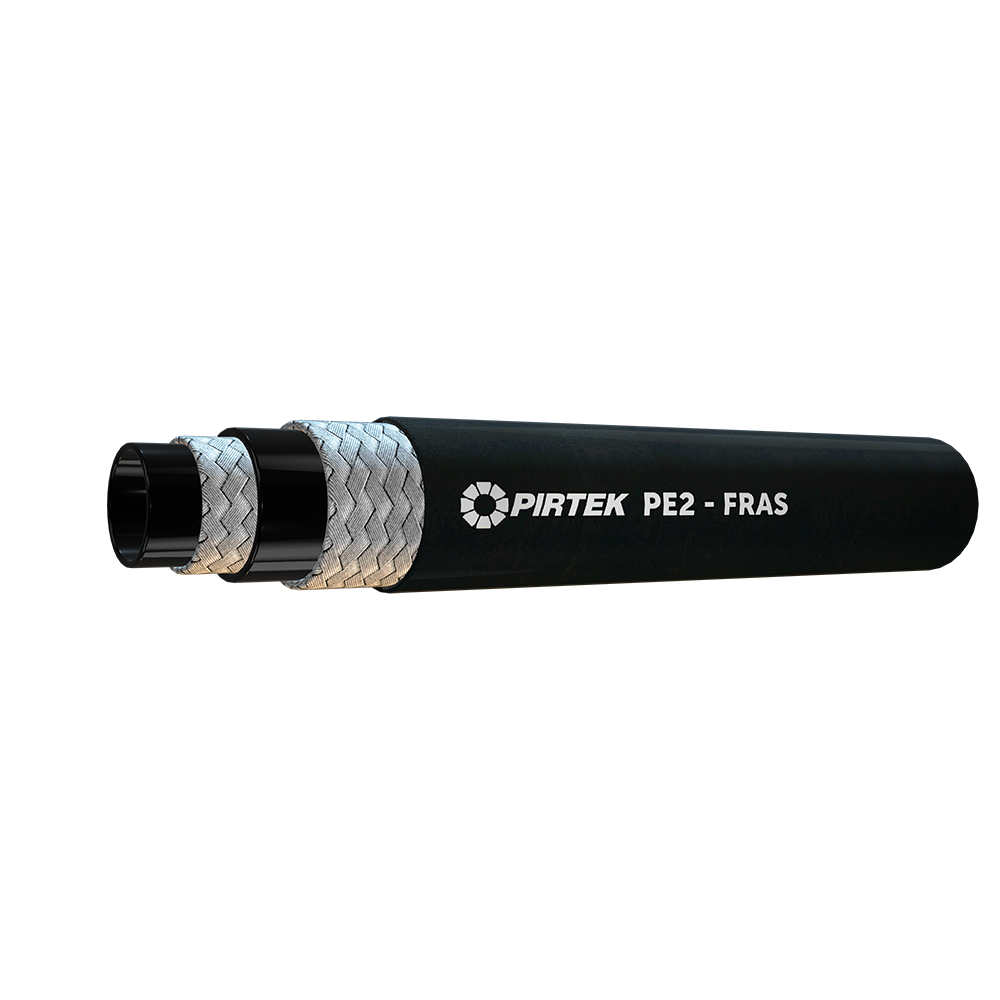

INNER LINER
Black seamless synthetic rubber. Oil resistant
REINFORCEMENT
Two braids of high tensile steel wire
OUTER COVER
Black smooth synthetic rubber resistant to abrasion/oils/ozone and weathering
TEMPERATURE RANGE
• -40°C up to 100°C (125°C discontinuous) mineral & vegetable oils
• -40°C up to 70°C water based fluids
• 0°C up to 70°C water & air
• -40°C up to 70°C external ambient.
• Prolonged usage with water or water based fluids at temperatures above 70ºC will allow wire corrosion as a result of diffusion through the inner tube.
SAFETY FACTOR
4:1
VACUUM RATING
N/A
APPLICATION
Extremely high pressure hose suitable for mineral and vegetable oils/aqueous emulsions/water/air and inert gases. Outer cover must be pin pricked if hose is to be used to convey air or inert gases above 17 bar.
FEATURES
MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static). Higher working pressures than conventional R2AT hoses. Compact hose with one wire outside dimensions. Tight bend radius with greater flexibility. Light weight.
SPECIFICATIONS/PERFORMANCE
Exceeds
• SAE 100R2AT
• 100R16
• EN 857 2SC
• ISO 11237 2SC/R16
• AS 3791 100R2
Specifications
| Item | ID – inch | ID – mm | OD (avg) – mm | Max. W.P – bar | Max. W.P – psi | Min. Bend Radius – mm | Weight – Kg/m |
|---|---|---|---|---|---|---|---|
| PE225-16 | 1 | 25.4 | 35.6 | 250 | 3626 | 250 | 1.30 |
| PE228-12 | 3/4 | 19.1 | 27.5 | 280 | 4061 | 160 | 0.80 |
| PE229-10 | 5/8 | 15.9 | 23.6 | 290 | 4206 | 130 | 0.63 |
| PE235-08 | 1/2 | 12.7 | 20.1 | 350 | 5076 | 90 | 0.55 |
| PE239-06 | 3/8 | 9.5 | 16.5 | 390 | 5656 | 70 | 0.38 |
| PE245-04 | 1/4 | 6.4 | 13.1 | 450 | 6527 | 45 | 0.30 |
COMPATIBLE HOSE COUPLINGS
| Hose Size | Crimp | Re-usable |
|---|---|---|
| -04 | R | A |
| -05 | R | A |
| -06 | R | A |
| -08 | R | A |
| -10 | R | A |
| -12 | R | A |
| -16 | R | A |
| -20 | R | A |
| -24 | R | A |
| -32 | R | A |
