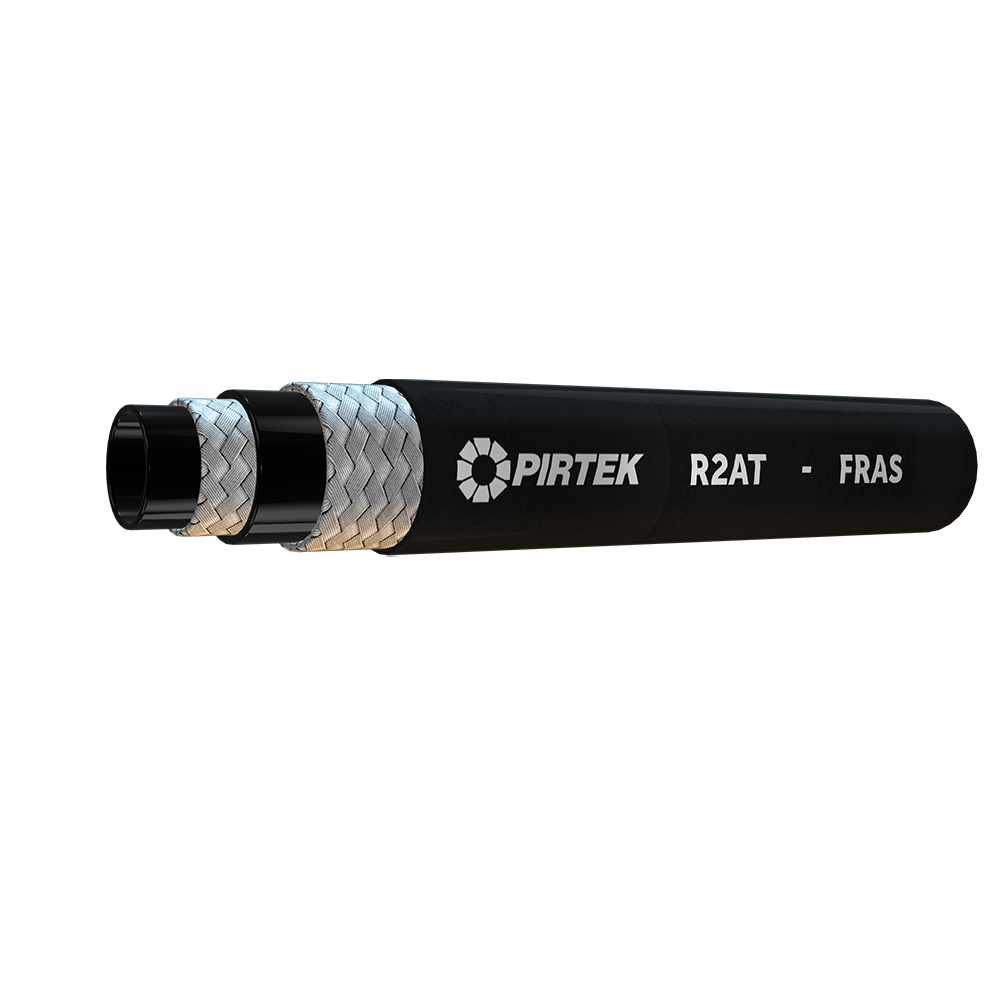

Description
INNER LINER
Seamless NBR (Nitrile) rubber. Oil resistant
REINFORCEMENT
Two braids of high tensile steel wire
OUTER COVER
Black smooth synthetic rubber resistant to abrasion/oils/ozone and weathering
TEMPERATURE RANGE
• -40ºC up to +100ºC mineral oil
• -40ºC up to +60ºC water based fluids
• 0ºC up to +60ºC water
• 0ºC up to +50ºC air
• -40ºC up to +70ºC ambient.
• Prolonged usage with water or water based fluids at temperatures above 60ºC will allow wire corrosion as a result of diffusion through the inner liner.
SAFETY FACTOR
4:1
VACUUM RATING
-0.2 Bar (7.6 in-Hg)
APPLICATION
Medium to high pressure hose for hydraulic fluids such as mineral oils/aqueous emulsions/water/air and inert gases. Outer cover must be pin-pricked if hose is to be used to convey air or gas above 17 bar.
FEATURES
MSHA flame resistance approved. FRAS (Fire Resistance Anti-Static)
SPECIFICATIONS/PERFORMANCE
• SAE 100R2AT
• EN853 2SN
• AS 3791 100R2
• ISO 1436 R2AT/2SN
